100M RG59 + 2 x 24/0.20 Cable

Stock Code:
BCCOMPCCTV59-100
Price:
$0.00 excl GST

Description

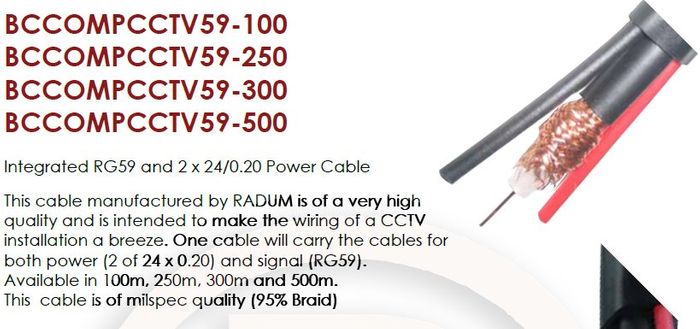

Composite RG 59 B/U & 2 x 24/0.20mm Cable

CONSTRUCTION : RG 59 B/U MIL-17-C Coax with One Red & One Black
24/0.20mm PVC sheathed wires in an overall sheath.

Coax Conductor ------------------------- 1 x 0.584mm ( Annealed copper ).
Coax Insulation -------------------------- Solid Low Density Polyethylene.
Coax Insulation O/D -------------------- 3.70mm.
Coax Shield ------------------------------- 95% Coverage 0.16mm / 16 x 7 BC.
Coax Jacket ------------------------------- V75 PVC Black.
Coax Jacket O/D ------------------------- 6.15mm.
Coax Impedance ------------------------- 75 Ohm.
Conductors --------------------- 24 strands 0.20mm
Conductor Sheath ------------- Flame Retardant V75 PVC.
Colours Red and Black.
Coax & Conductors Overall Sheath - Flame Retardant V75 PVC Black.
( Overall sheath MUST not stick to
coax or conductors sheath’s).

PRINTING: Both RG59 & Composite -- White printing on the Black sheath.
Printing to be repeated at approximately 0.05m intervals.
Composite -- RADUM Composite Cable RG59 B/U & 2 x 24/0.20mm CABLE.
RG59 -------- RADUM RG59 B/U MIL-C-17 Type 75 Ohm COAXIAL CABLE.

PACKING: NOTE ---- The Diameter of the Centre hole in the drums MUST
be at least 30mm or the shipment will be rejected.
100m Plastic / Wooden Drum ( 1 by 100m drums per cardboard BOX ).
250m & 500m Wooden Drums ( 1 by 250m or 500m drum per cardboard BOX ).

SHIPPING MARK: ---- RADUM in a Triangle.

LABELLING: On the outside of each 100m / 250m & 500m Drum Flange’s


On the outside of each packing 100m / 250m & 500m Box’s ---
