RJ45 Line Tester with POE Tester

Stock Code:
TLTEST5084-N
Price:
$0.00 excl GST

Description

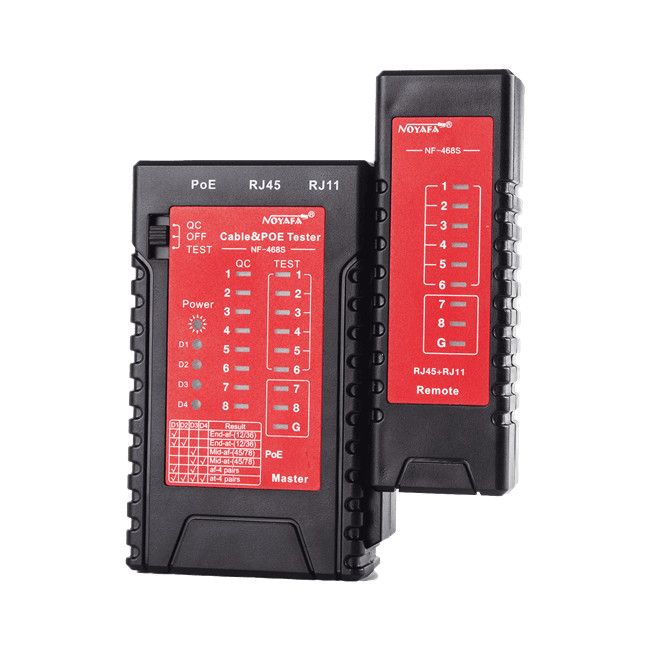

NF468S is a multi-functional cable tester that integrates continuity tests for RJ45 and RJ11 cables, identifies the type of POE power, either endspan or midspan, open or cross circuit, and plug of RJ45, RJ11, RJ12 wires.
Features

Quickly and easily to test the cable, open, cross, pass, short results;
Quickly to check the RJ45/RJ11 plug;
Quickly identify the type and power of PoE;
Compliant with IEEE 802.3 af / 802.3 at PoE standard;
RJ45 connector, simple plug in the cable;
The“power" light will quickly flash to indicate the battery power is low.

Specifications

Maximum test distance: 2000m
Cable type: RJ45 network cable Cat5/5e/6/6a (UTP/STP), RJ11/12 telephone cable Cat3 (6P2C/6P4C/6P6C)
Testing indicator: 8 indicator lights for a quick test
Shield indication G
QC: RJ45/RJ11 plug test
PoE: 4 LED (Midspan/ endspan connection at/af PoE power)
Size (LxWxD): 10.4 x 9.6x 2.7cm
Power supply: DC 9.0V battery included
Weight: 200g
