500m Dr RG 58 C/U Coaxial Cable

Stock Code:
BCX2120-500
Price:
$0.00 excl GST

Description

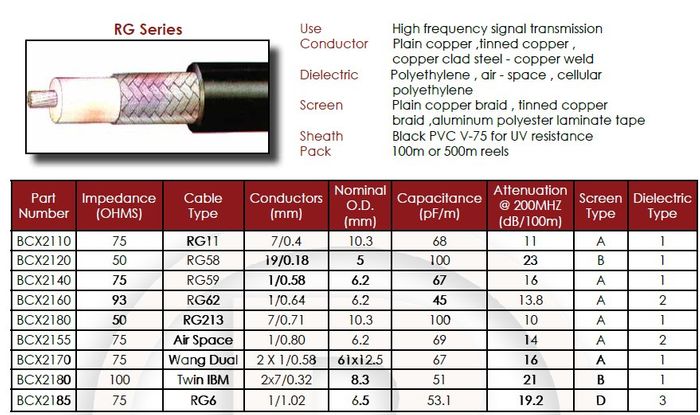

RG 58 C/U MIL-C-17 50 Ohm Coaxial Cable

CONSTRUCTION :

Type ---------------- MIL-C-17 Type.
Conductor O/D --- 19 x 0.18mm ( Tinned annealed copper wire ).
Insulation ---------- Solid Polyethylene.
Insulation O/D ---- 2.95mm.
Shield --------------- TC (Tinned Copper) 16x7 @ 0.12mm = 112 Net.
( 80% coverage ).
Jacket --------------- Flame Retardant V75 Non Migrating PVC.
Jacket Colour ----- Black.
Jacket O/D --------- 4.95mm.
Impedance --------- 50 Ohm.


PRINTING: White printing on the Black cable jacket.
Printing to be repeated at approximately 0.05m intervals.

RADUM RG58 C/U MIL-C-17 Type 50 Ohm COAXIAL CABLE.

PACKING: Note --- The Diameter of the Centre hole in all drums MUST
be at least 30mm or the shipment will be rejected.

100m Plastic or Wooden Drum ( 2 by 100m drums per cardboard Box).
500m Wooden Drum ( 1 by 500m drum per cardboard Box).

SHIPPING MARK: ---- RADUM in a Triangle.

LABELLING: ---- On the outside of each drum Flange.
On the 100m Flange --- On the 500m Flange ---

BCX2120-100 BCX2120-500
RADUM RG58 C/U RADUM RG58 C/U
50 Ohm Coaxial Cable 50 Ohm Coaxial Cable
Length – 100m Length – 500m

LABELLING: ---- On the outside of each packing Box.
On the 100m Box --- On the 500m Box ---

BCX2120-100 BCX2120-500
RADUM RG58 C/U RADUM RG58 C/U
50 Ohm Coaxial Cable 50 Ohm Coaxial Cable
Quantity 2 x 100m Quantity 1 x 500m
