1.5Ton Jacking tray to suit DFP608-E

Stock Code:
RDMH-DFP608E-JT
Price:
$309.09 excl GST

Description

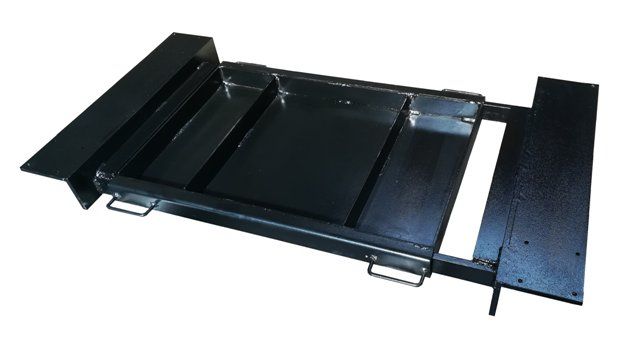

1.5Ton Jacking Tray to suit DFP608-E

Movable jacking tray for air jack/bottle jack lifting.
Jack not included.

Specifications:
Lifting capacity: 1500kg (1.5Ton).
Overall Dimensions: 1512mm x 660mm x 110mm
Overall Unit Height (Bottom to Top): 110mm
Adjustable platforms: 1192mm to 1512mm
Platform width: 570mm
Platform length: 800mm
Adjustable mounting brackets: 0mm to 160mm each side.
Mounting bracket width: 660mm
Jack base size: 480mm x 400mm
Unit weight: 80kgs without Jack.

Important: Only use with adjustment brackets evenly spread. Jacking Tray MUST be in centre when lifting loads. Failure will result in SWL (Safe Working Loads) been dramatically lower then Max Capacity.

Radum Air Jack to suit refer to part numbers:
RDM-LD-J01012 1.8Ton 3 Layer
RDM-LD-J01021 2.2Ton 2 Layer
