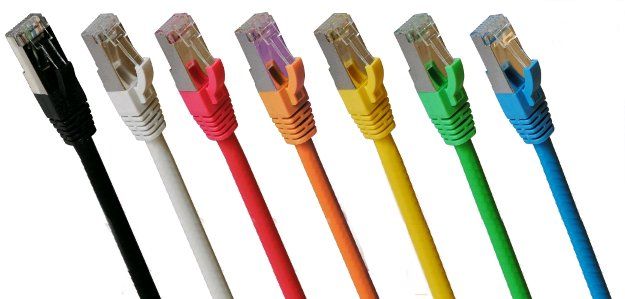

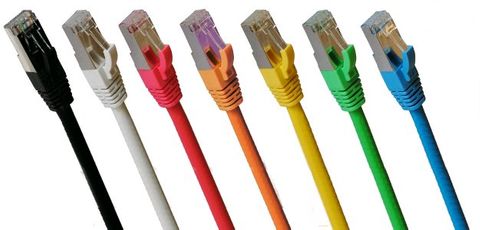

Yellow 0.3M Cat6A SFTP Patch Lead

Stock Code:
UTP6A0003PV-YW
Price:
$5.00 excl GST

Description

Specification:
Material:

RJ45 Plug
Housing: Polycarbonate, UL 94V-2, Transparent Color
Contact Material: Phrosphor Bronze With 50 - 60 Micro-inch Nickel Plate
Contact Finished: Min. 50 Micro-inch Gold Plated.
Shield: Bronze With Nickel Plated

Narrow PVC Molded.

Cable:
Jacket: PVC
Conductor: 26AWG Stranded Copper
Isolation: PE
Shield:Individual Pair Aluminum Foil Shielded. Overal Tin Copper Braid Shielded

Cable Structure: S/FTP 4 Twisted Pair

Wiring: T-568A

Standards:

Australian Approval - ACMA Lab fully tested and Approved
ANSI/TIA 568C.2 Approval
UL Approval UL444
ISO/IEC60332-1 Approval
ISO/IEC60332-3 part 24 Approval
ISO/IEC 11801 Approval
EN50288-4-2, EN50173 Approval
