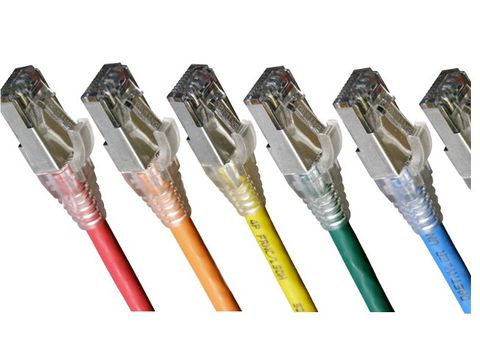

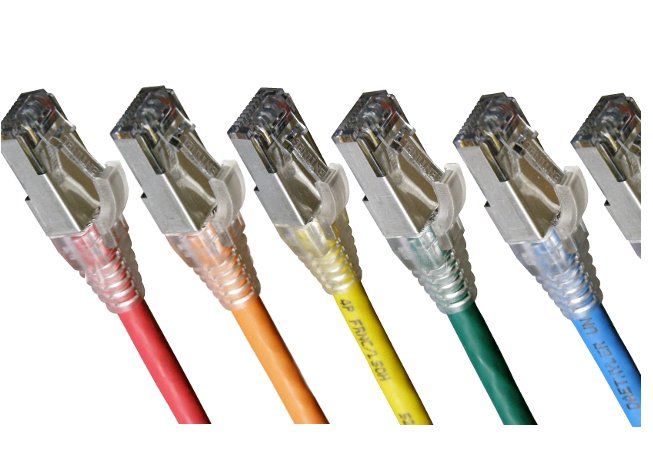

Blue 2.0M Cat6A LSZH SFTP Patch Lead

Stock Code:
UTP6A002LS-BL
Price:
$8.60 excl GST

Description

Description
CAT6A ( CAT6 Augmented ) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference and are specified up to frequencies of 500Mhz.

SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighboring pairs from crosstalk.

Specification:
Meets all augmented CAT6A TIA-568-C.2 requirements
Ideal Cable for 10 Gigabit Application
High Performance Data Communication Cable
Guaranteed Performance up to 500Mhz
Fully screened for alien crosstalk immunity
Fully shielded construction virtually eliminates ANEXT
LSZH Jacket
Plugmaster 50u gold-plated and shielded CAT6A connectors
Fluke DSX-5000 Component tested

Cable:
Jacket: PVC LSZH
Conductor: 26AWG Stranded Copper
Isolation: PE
Shield:Individual Pair Aluminum Foil Shielded. Overal Tin Copper Braid Shielded

Cable Structure: S/FTP 4 Twisted Pair

Wiring: T-568A

Standards:
Australian Approval N11251 - ACMA Lab fully tested and Approved
ANSI/TIA 568C.2 Approval
UL Approval UL444
ISO/IEC60332-1 Approval
ISO/IEC60332-3 part 24 Approval
ISO/IEC 11801 Approval
EN50288-4-2, EN50173 Approval

Available in 10 Colours Blue, Grey, Green, Red, Purple, Black, Yellow, White, Orange, Pink
