16 Pr x 7/0.3 OAS Instrument C

Stock Code:
BCI7116-100
Price:
$0.00 excl GST

Description

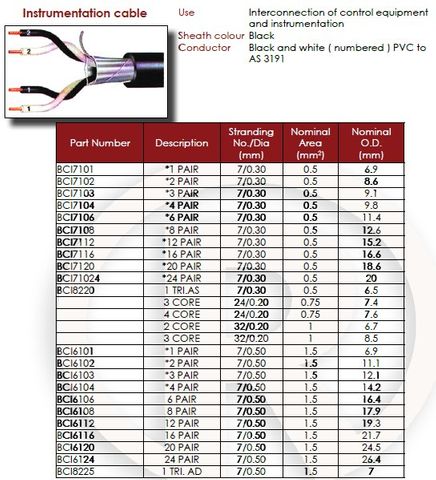

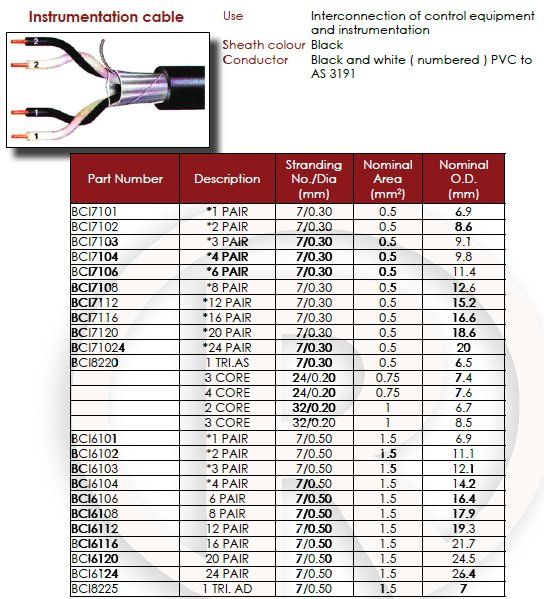

RADUM Over ALL Screened Instrumentation Cable

NOTE : These cables are low voltage cables and must not be used in the
direct connection of equipment to mains power supplies.

CONSTRUCTION :

Conductor ---------------- Stranded 24 AWG. 7 strands x 0.30mm Copper.
Insulation ------------------ V90HT (105C) Degree Polypropylene.
Shielding ------------------- Aluminium Polyester Laminate Foil Tape.
Drain Wire ---------------- 7 strands x 0.25mm Tinned Copper.
Pair Colour ---------------- Black & White with pair Numbering.
Insulation Thickness ---- 0.40mm.
Jacket ----------------------- Flame Retardant PE Non Migrating .
Jacket Colour ------------- Black.

PRINTING: White printing on the Black sheath.
Printing to be repeated at approximately 0.05m intervals.

WWW.RADUM.COM.AU 1 Pair 7/0.30MM Shielded INSTRUMENTATION Cable N11251.

Note ….. ( Above printing example is for 1 Pair Cable)

PACKING: NOTE --- The Diameter of the Centre hole in all drums MUST
be at least 50mm or the shipment will be rejected.

100m & 500m Drum’s ( 1 by 100m & 1 by 500m drum per cardboard BOX).

SHIPPING MARK: ---- RADUM in a Triangle.

LABELLING: ---- On the outside of each drum Flange.

BCI 7101-100 ( Alter - 100 to - 500 for 500m Drum).
RADUM 1 Pair 7/0.30mm
Screened Instrumentation Cable
Length 100m N11251 ( Alter - 100 to - 500 for 500m Drum
