4 - Wire Access Control Module

Stock Code:
PDX-ACM12
Price:
$0.00 excl GST

Description

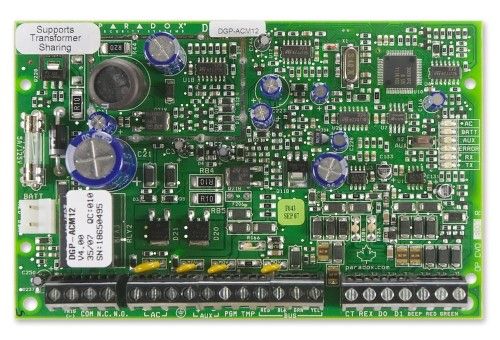

The PDX-ACM12 provides the EVO system with sophisticated access control features including access schedules,
Door Open too long, Door forced alarms and compatibility with Paradoxs 4 wire readers or industry standard wiegand readers

Connections for 1 door (card reader, REX, door contact and lock output)
In-field firmware upgradeable via CONV4USB and WinLoad
Automatic unlocking schedule
Door Left Open and Door Forced Open options
Door unlock and extended delay timers
Unlock door manually with button or PGM event
Safe Mode option (local storage of specified credentials in the event of communication loss)
Fits in a 20cm x 25.5cm x 7.6cm metal box
Built-in supervised 1.5A switching power supply
